1/16"~1" OD A789 SS Hydraulic Control Line Tubing Duplex 2205
Control line is normally used to operate surface controlled subsurface ety valves. Tiptop specializes in providing control lines that can meet the specific requirements of each customer. The control line with ASTM specifications can be offered in wide range of metallurgies. Encapsulated control line is also available which can improve the crush and abrasion resistance of the control line. Encapsulated control line is available in several configurations and materials to suit the customers' special requirements.
Control line uses seamless welded stainless steel, duplex and nickel alloy tubing to protect electrical and optical components from the pressure and corrosive effects of the downhole environment. Our company specializes in producing Capillary tubing(Control line tube) , is your reliable supplier.
| Seam Welded Tubing (TYPE) | Material (Alloy) | Min. Burst pressure (PSI) | Min. Collapse pressure (PSI) | Load at Min. 0.2% YS(IBS) | Load at Typical UTS (IBS) |
| 3/8" * 0.035" | 2205 | 18,333 | 12,222 | 2,991 | 4,673 |
| 3/8" * 0.049" | 2205 | 25,667 | 16,489 | 4,015 | 6,273 |
| 3/8" * 0.065" | 2205 | 34,048 | 20,930 | 5,064 | 7,913 |
| 3/8" * 0.083" | 2205 | 43,476 | 25,371 | 6,091 | 9,517 |
The 3/8” hydraulic control line tubing is mainly used to inject chemicals into oil and gas wells. The 3/8” hydraulic control line tubing is connected to the downhole chemical injection valve. And the descaling agent is injected through the 3/8” hydraulic control pipeline and the chemical injection valve from the ground into the downhole tubing so as to make the oil and gas fields produce normally.
It can also be used for pressure control of surface ety valves and other surface valves, as well as connecting lines for instrumentation control systems of large oil and gas field drilling and oil extraction equipment.
Inspection & Test
1 .100 % PMI , Spectro Chemical Aanlysis Test for Raw Material
2 .100 % Dimension & Visual Examination
3 . Mechanical Properties Test Include Tension Test,Flaring Test ( For Seamless tube / pipe ) / Flange Test ( For Welded Pipe & Tube ) , Hardness Test , Reversed Flattening Test
4 .100 % Hydrostatic Test or 100 % NON - DESTRUCTIVE Test ( ET or UT )
5 . Radiographic Test for Welded Pipe ( shall be accordance with specification , or shall be as agreed upon between the purchaser and vendor )
6 . Straightness Test ( optional )
7 . Roughness Test ( optional )
8 . Intergranular Corrosion Test ( optional )
9 . Impact Test ( optional )
10 . Grain Size Determinations ( optional )
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION .
| UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| S32205 | 0.03 max | 1 max | 2 max | 0.03 max | 0.02 max | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | ~ |
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
Product Tags:
|
|

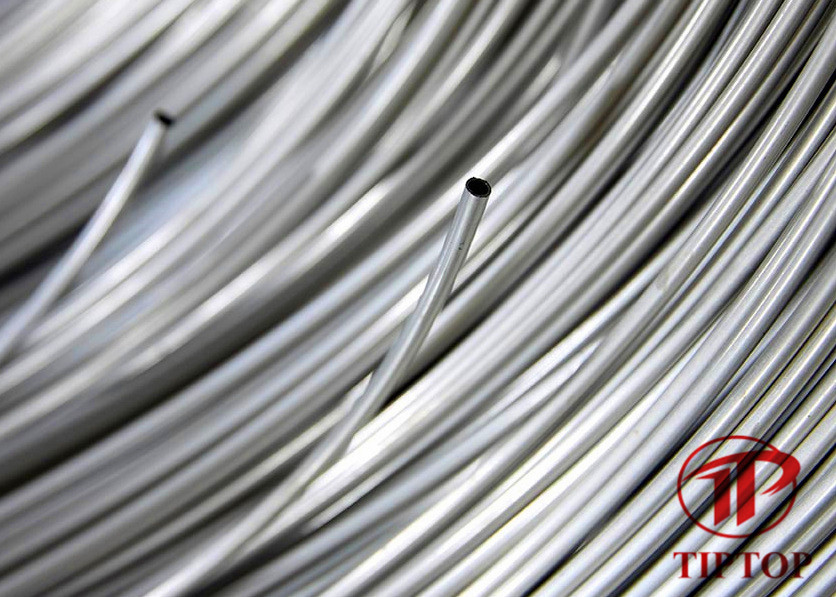

1" OD Capillary SS Hydraulic Control Line Tubing Images
|
