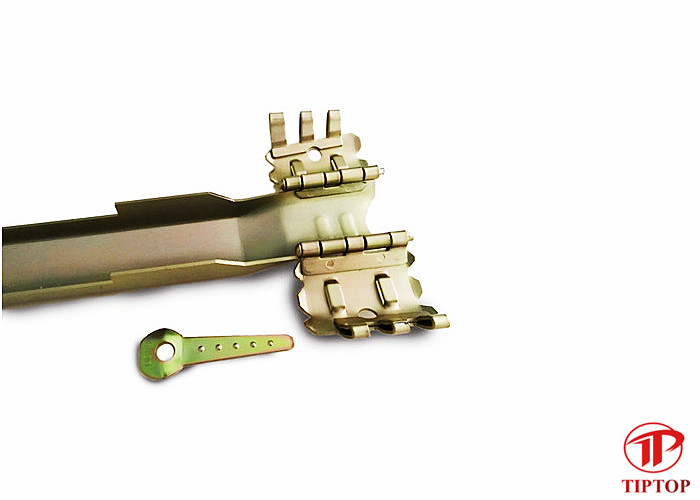

Cast Steel of Downhole Pipeline and Cross Coupling ESP Cable Protectors Φ30-33mm
Underground wire / cable is both a key element, but also a region often failure. These weaknesses may be due to the natural limits of e working load and breaking strain due, it may be due to poor operating factors. Compared with the more conventional low tension found in shallow wells, wells such as a tendency in highly deviated significantly further increase the tension of the cable.
Cross-coupling protectors, intermediate joint clamps, low profile and umbilical protectors, etc.-are suitable for almost any configuration of control lines, submersible pump (ESP) cables, umbilical lines or lower packaged bundles in the borehole.
The motor wire extension protector provides excellent coordination and protection, and can be applied to a variety of well types, including inclined wells, vertical wells, horizontal wells, geothermal wells, offshore wells and subsea wells.
Our ESP cable protector is suitable for standard and highly customized protection systems. You can also choose various alloys that can withstand the harshest underground environments.
Application:
• ESP cable
• Subsurface ety valves control line
• Chemical injection line
• Permanent Gauges
• Intelligent Wells
• Fiber Optic
• Coiled tubing
| NO. | Description | Tube size | Cable type | Cable size |
| 1 | Cable Protector 2-3/8R6-8 | 2-3/8" | Round | Φ6-8mm |
| 2 | Cable Protector 2-3/8F11/34 | 2-3/8" | Flat | 11mm SQUARE |
| 3 | Cable Protector 2-3/8R32-34 | 2-3/8" | Round | Φ32-34mm |
| 4 | Cable Protector 2-7/8R6-8 | 2-7/8" | Round | Φ6-8mm |
| 5 | Cable Protector 2-7/8R30-33 | 2-7/8" | Round | Φ30-33mm |
| 6 | Cable Protector 2-7/8R34-37 | 2-7/8" | Round | Φ34-37mm |
| 7 | Cable Protector 2-7/8F11/34 | 2-7/8" | Flat | 11mm SQUARE |
| 8 | Cable Protector 2-7/8F16-19/56 | 2-7/8" | Flat | 16-19mm SQUARE |
| 9 | Cable Protector 2-7/8F16-19/70 | 2-7/8" | Flat | 16-19mm SQUARE |
| 10 | Cable Protector 3-1/2R6-8 | 3-1/2" | Round | Φ6-8mm |
| 11 | Cable Protector 3-1/2R30-33 | 3-1/2" | Round | Φ30-33mm |
| 12 | Cable Protector 3-1/2R34-37 | 3-1/2" | Round | Φ34-37mm |
| 13 | Cable Protector 3-1/2R38-42 | 3-1/2" | Round | Φ38-42mm |
| 14 | Cable Protector 3-1/2F11/34 | 3-1/2" | Flat | 11mm SQUARE |
| 15 | Cable Protector 3-1/2F16-19/60 | 3-1/2" | Flat | 16-19mm SQUARE |
| 16 | Cable Protector 3-1/2F19-23/70 | 3-1/2" | Flat | 19--23mm SQUARE |
| 17 | Cable Protector 4-1/2R6-8 | 4-1/2" | Round | Φ6-8mm |
| 18 | Cable Protector 4-1/2R34-37 | 4-1/2" | Round | Φ34-37mm |
| 19 | Cable Protector 4-1/2R38-42 | 4-1/2" | Round | Φ38-42mm |
| 20 | Cable Protector 4-1/2F11/34 | 4-1/2" | Flat | 11mm SQUARE |
| 21 | Cable Protector 4-1/2F16-19/60 | 4-1/2" | Flat | 16-19mm SQUARE |
| 22 | Cable Protector 4-1/2F19-23/60 | 4-1/2" | Flat | 19--23mm SQUARE |
| 23 | Cable Protector 5-1/2R6-8 | 5-1/2" | Round | Φ6-8mm |
| 24 | Cable Protector 5-1/2R34-37 | 5-1/2" | Round | Φ34-37mm |
| 25 | Cable Protector 5-1/2R38-42 | 5-1/2" | Round | Φ38-42mm |
| 26 | Cable Protector 5-1/2F11/34 | 5-1/2" | Flat | 11mm SQUARE |
| 27 | Cable Protector 5-1/2F11-16/56 | 5-1/2" | Flat | 11-16mm SQUARE |
| 28 | Cable Protector 5-1/2F16-19/70DUAL | 5-1/2" | Flat | 19--23mm SQUARE |
| 29 | Cable Protector 7R6-8 | 7" | Round | Φ6-8mm |
| 30 | Cable Protector 7F11/34 | 7" | Flat | 11mm SQUARE |
Note: We can provide specific design to meet strict technological and quality.
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
