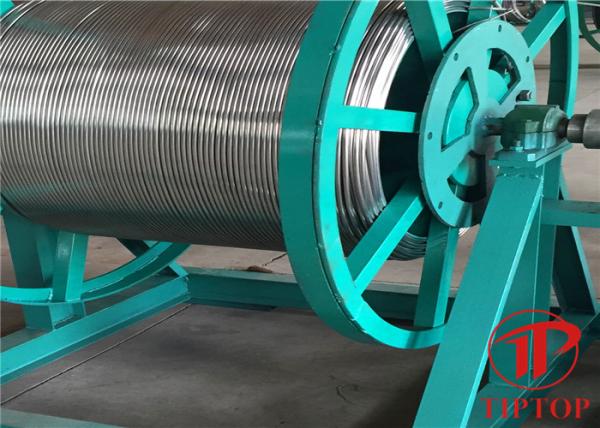

Stainless Steel 2 3/8 CT90 API 5ST Coiled Tubing

Name: Stainless Steel 2 38 CT90 API 5ST Coiled Tubing
Brand: Tiptop
Price: 1 USD

Stainless Steel 2 3/8 CT90 API 5ST Coiled Tubing Manufactures

Brand Name : Tiptop

Model Number : CT90

Certification : ISO 9001

Place of Origin : China

MOQ : 1 reel

Price : USD/EURO/RMB

Payment Terms : L/C, T/T,

Supply Ability : 1000 TONS PER MONTH

Delivery Time : ONE WEEL

Packaging Details : WOODEN REEL +WOODEN CASE

Material : CT90

Technique : Cold drawn

Standard : API 5ST

Processing type : Seamless & Welded

OD : 2 3/8

Thickness : 0.109~0.3

Contact Now

Conventional CT90 Stainless Steel Coiled Tube High Strength API Standard 2 3 / 8

Product introduction

As one of the main products of our company, conventional CT90 coiled tubing has more than 10 years of production history and supply experience, and now there is a mature production process and production line. Similar materials include CT70, CT80, CT90, CT100, CT110, etc. All our products are of high quality and fully conforms to API 5ST standard.

CT90 coiled tubing is the product with the highest comprehensive requirements and the largest dosage during coiled tubing product series. Our CT90 coiled tubing has good plasticity, 10% better fatigue life than CT80 coiled tubing, and is insensitive to HIC and SSC.

Our products have complete specifications and can meet all working conditions. The outer diameter range of CT90 tube we supply is from 3/4”(Ф19.05mm) to 3 1/2”(Ф88.9mm). The thickness range is from 0.075" to 0.3" (1.9mm ~ 7.6mm). All dimensions and corresponding parameters are listed in the table below, we can also customize it according to customers' requirement details.

OD	Thickness		U-Weight	yield strength	Tension strength	Loading of pipe body		Min. test pressure
OD	specified	Min.	U-Weight	yield strength	Tension strength	Min. yield force	Min. tension force	Min. test pressure
Inch	Inch	Inch	lbs/ft	psi	psi	lbs	lbs	psi
3/4	0.08~0.118	0.075~0.11	0.57~0.8	90000	97000	15200~21100	16300~22700	15000~15000
1	0.075~0.134	0.07~0.126	0.74~1.24	90000	97000	19600~32800	21100~35400	10700~15000
1 1/4	0.075~0.175	0.07~0.167	0.94~2.01	90000	97000	24900~53200	26900~57300	8600~15000
1 1/2	0.087~0.204	0.082~0.196	1.31~2.83	90000	97000	34800~74800	37500~80600	8400~15000
1 3/4	0.095~0.25	0.09~0.242	1.68~4.01	90000	97000	44500~106000	47900~114300	7900~15000
2	0.109~0.281	0.104~0.266	2.2~5.16	90000	97000	58300~136600	62800~147200	8000~15000
2 3/8	0.109~0.3	0.104~0.285	2.64~6.65	90000	97000	69800~176000	75300~189700	6700~15000
2 5/8	0.118~0.3	0.11~0.285	3.15~7.46	90000	97000	83600~197200	90100~212600	6400~15000
2 7/8	0.134~0.3	0.126~0.285	3.93~8.26	90000	97000	103800~218400	111900~235400	6700~15000
3 1/4	0.145~0.3	0.137~0.285	4.81~9.46	90000	97000	127300~250200	137200~269700	6400~13400
3 1/2	0.156~0.3	0.148~0.285	5.58~10.26	90000	97000	147500~271400	159000~292500	6500~12500

The chemical composition of the product conforms to the standard, as shown in the following table:

Grade	max C	max Mn	max P	max S	max Si
CT90	0.16	1.20	0.020	0.005	0.50
