ASTM A789 Incoloy 825 Seamless Steel Hydraulic Control Line Tubing Downhole
Chemical Composition
| Composition,% |
| Material |
UNS |
Standard |
C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
N |
Cu |
Fe |
Al |
Ti |
Cb+Ta |
| 625 |
N06625 |
ASTM B704 |
0.10 |
0.50 |
0.015 |
0.015 |
0.50 |
min 58.0 |
20.0-23.0 |
8.0-10.0 |
... |
... |
5.0 |
0.4 |
0.40 |
3.15-4.15 |
| 825 |
N08825 |
0.05 |
1.00 |
... |
0.030 |
0.50 |
38.0-46.0 |
19.5-23.5 |
2.5-3.5 |
... |
1.5-3.0 |
min 22.0 |
0.2 |
0.6-1.2 |
... |
Size Chart
| OD |
Wall
(inch) |
Materials |
Standard |
Working Pressure
(MPa) |
Length |
| 1/8" |
0.02,0.028,0.035 |
Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625) |
ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704 |
60-120 Mpa |
Customized |
| 3/16" |
0.02,0.028,0.035,0.049 |
| 1/4" |
0.02,0.028,0.035,0.049,0.065.0.083 |
| 5/16" |
| 3/8" |
| 1/2" |
| * OD: Up to 1 inch |
Hydraulic Control Lines are used in a number of downhole applications serving the purpose of delivering hydraulic supply to operate a ety Valve or, opening or closing an isolation device. Another common application for control lines is Chemical Injection whereas the line is used as conduit to deliver chemical to various points in the production tubing. We manufacturer a variety of sizes and alloys in both welded and seamless.
Seamless control lines are used in SCSSV, Chemical Injection, and Advanced Well Completions. Seamless tubes provide another tubing solution for our customer's complex well designs. The most common uses for Seamless line tend to be shorter length applications whereby no orbital welds are required. Please contact our team to learn more about our seamless control line offerings.
Tiptop is specialized in providing alloy steel coiled tube, alloy steel control line, alloy steel continuous tube.
The nickel content in Alloy 825 provides resistance to chloride-ion stress corrosion cracking. The nickel, in conjunction with the molybdenum and copper, also gives Alloy 825 tubing great resistance to reducing environments, like those containing sulfuric and phosphoric acids. Aiding resistance to pitting and crevice corrosion is one of the chief benefits of the molybdenum. Resistance to a variety of oxidizing substances such as nitric acid, nitrates, and oxidizing salts comes from the chromium content. Titanium, often with heat treatment, serves to stabilize the alloy against sensitization to inter granular corrosion.
Manufacturing Range
• Diameter from 1/8” to 1”.
• Wall thickness: 0.02,0.028,0.035,0.049,0.065.0.083.
• OD tolerance: Follow customer request
• Length: According To Customers' Requests.

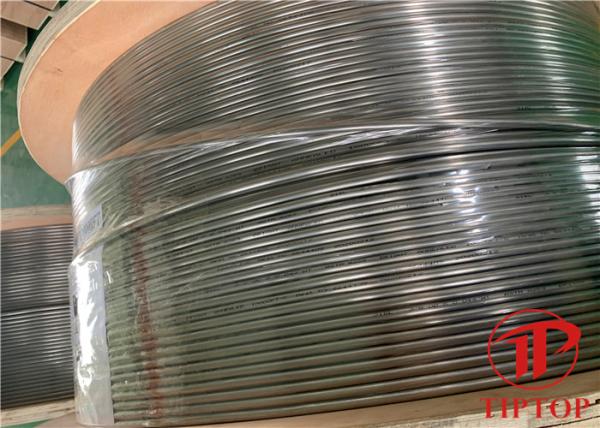

• Packing: Wrapped on wooden reel, and surface protected by plastic bags,finally packed into wooden case or iron case.
• Process Method: Cold Drawn / Cold Rolled.
