Cost - effective SS 304L Stainless Steel Coiled Tubings ASTM A269
304/304L is widely used grades in stainless steel group due to its excellent corrosion resistance and properties, these stainless steels have ability to resist hight temperature, low temperature as well as high pressure, and it's cost effective material relatively.
We have many years of experiences to offer stainless steel tubing coil, fabricating and bending stainless steel tubing by bending equipment and tool, ASTM A213 / A269 for seamless stainless steel tubing, ASTM A249 / A269 for welded tube, generally in bright annealing finish, annealing pickling finish can be provided for option.
This austenitic stainless steel 304 / 304L coiled tubing are manufactured by making use of quality assured steel & leading techniques in accordance with the norms of industry. Besides, this range is admired in the market for its high performance, excellent corrosion resistance and superior toughness. Our range of austenitic stainless steel coiled tubes are known for its highly excellent performance and provides optimum results.
Our Coiled Stainless Steel Tubes is far and wide used in the natural gas, petrochemical, oil and gas, and geothermal applications.
We specialize in manufacturing of both stainless steel seamless coiled tubes and stainless steel welded coiled tubes in an extensive collection of stainless steel, titanium, nickel, and other special alloys. Most of the standard sizes of this Coiled Stainless Steel Tubing are available ex-stock for instantaneous deliveries to our patrons. We offer good quality SS seamless coiled tubes at industry leading prices. We manufacture these SS welded coiled tubes by fine quality raw materials and sophisticated machinery. Meanwhile, stainless steel coiled tubes are available in lengths of different meters or customized lengths according to clientele requirements.
Size Chart:
| OD | Wall
(inch) | Materials | Standard | Working Pressure
(MPa) | Length |
| 1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625) | ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704 | 60-120 Mpa | Customized |
| 3/16" | 0.02,0.028,0.035,0.049 |
| 1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 |
| 5/16" |
| 3/8" |
| 1/2" |
| * OD: Up to 1 inch |
| Chemical Composition,% |
| Standard | ASTM A269 | ASTM A789 | ASTM B704 |
| Material | SS 304 | SS 304L | SS 316 | SS 316L | Duplex 2205 | Super Duplex 2507 | Incoloy 625 | Incoloy 825 |
| UNS | S30400 | S30403 | S31600 | S31603 | S32205 | S32750 | N06625 | N08825 |
| C | 0.08 | 0.035 | 0.08 | 0.035 | 0.03 | 0.03 | 0.1 | 0.05 |
| Mn | 2 | 2 | 2 | 2 | 2 | 1.2 | 0.5 | 1 |
| P | 0.045 | 0.045 | 0.045 | 0.045 | 0.03 | 0.035 | 0.015 | ... |
| S | 0.03 | 0.03 | 0.03 | 0.03 | 0.02 | 0.02 | 0.015 | 0.03 |
| Si | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.5 | 0.5 |
| Ni | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-15.0 | 4.5-6.5 | 6.0-8.0 | min 58.0 | 38.0-46.0 |
| Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 | 24.0-26.0 | 20.0-23.0 | 19.5-23.5 |
| Mo | ... | ... | 2.00-3.00 | 2.00-3.00 | 3.0-3.5 | 3.0-3.5 | 8.0-10.0 | 2.5-3.5 |
| N | ... | ... | ... | ... | 0.14-0.20 | 0.24-0.32 | ... | ... |
| Cu | ... | ... | ... | ... | ... | 0.5 | ... | 1.5-3.0 |
| Fe | | | | | | | 5 | min 22.0 |
| Al | | | | | | | 0.4 | 0.2 |
| Ti | | | | | | | 0.4 | 0.6-1.2 |
| Cb+Ta | | | | | | | 3.15-4.15 | ... |
Product Tags:
|
|

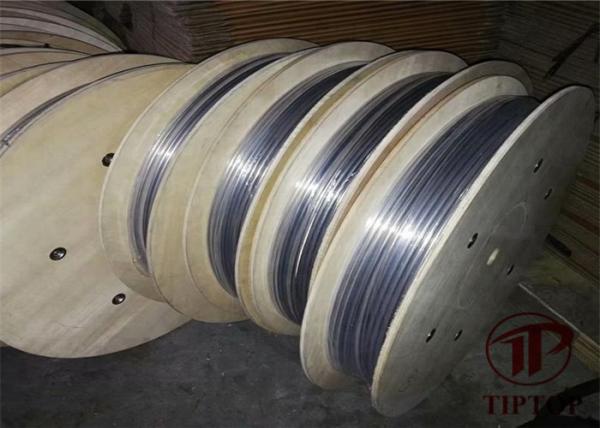

Seamless Cold Drawn ASTM A269 SS 304L Coiled Tubings Images
|
