Seamless Hydraulic Control Line Tube for Chemical Processing
We specialize in providing small diameter tubing ranging from 0.125 inch to 1 inch outer diameter (3.2 mm to 25.4 mm) and a variety of wall thicknesses.Our coiled seamless tubing can exceed 6,000 feet (2 km) in length without any longitudinal or orbital welds.

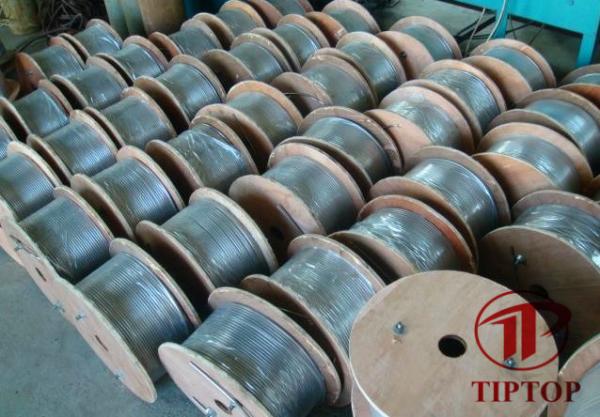

We can supply coiled seamless tubing in loose bulk wound coils, or level wound on various size reels. All tubing can be coated with PVC or TPU providing additional protection against the elements and line identification.
With seamless coil tubing, there is no risk of impurities that are often associated with welded tubes. This makes seamless the preferred option for a multitude of critical applications.
Continuous length, seamless tubing significantly decreases the opportunity for defect, such as leaks and other long-term failures.
Application of our seamless coiled tubing:
Oil & Gas – Chemical injection and hydraulic control lines in downhole and subsea applications.
Chemical Processing – When critical fluids are transferred in a chemical process environment our seamless tube eliminates the potential of a filler material to flake off and get trapped.
Alternative Energy – Coiled tubing for Hydrogen Refueling Stations, CNG Transfer, LNG Transfer, Geothermal and Solar Dishes.
Size Chart:
| OD | Wall
(inch) | Materials | Standard | Working Pressure
(MPa) | Length |
| 1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625) | ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704 | 60-120 Mpa | Customized |
| 3/16" | 0.02,0.028,0.035,0.049 |
| 1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 |
| 5/16" |
| 3/8" |
| 1/2" |
| * OD: Up to 1 inch |
